March 9, 2026Alloy Wheels Fitment Guide for UAE: PCD, Offset (ET), Centre Bore, and Correct Wheel Width
Upgrading alloy wheels is one of the most popular car modifications in Dubai and across the UAE. From luxury sedans to high-performance SUVs, drivers often install larger rims to enhance appearance and handling.
However, many drivers focus only on design and forget the most important factor: correct wheel fitment.
Choosing the wrong wheel specifications can cause:
-
Steering vibration at highway speeds
-
Uneven tyre wear
-
Suspension damage
-
Wheel rubbing against the fenders or brakes
With UAE highways reaching speeds of 120–140 km/h and extreme summer heat, correct wheel fitment becomes even more critical.
This guide explains the key measurements you must understand before buying alloy wheels in Dubai.
Why Correct Wheel Fitment Matters in the UAE
Driving conditions in the UAE place unique stress on wheels and tyres.
High-Speed Highways
Dubai–Abu Dhabi highways allow speeds of 140 km/h, meaning poorly fitted wheels quickly create vibrations.
Extreme Heat
Summer road temperatures can exceed 65°C, which amplifies stress on tyres and wheel assemblies.
Desert & Sand Exposure
Fine desert sand can enter poorly fitted hub areas, causing imbalance or corrosion over time.
For these reasons, precision wheel fitment is not optional in the UAE—it’s essential.
Understanding PCD (Pitch Circle Diameter)

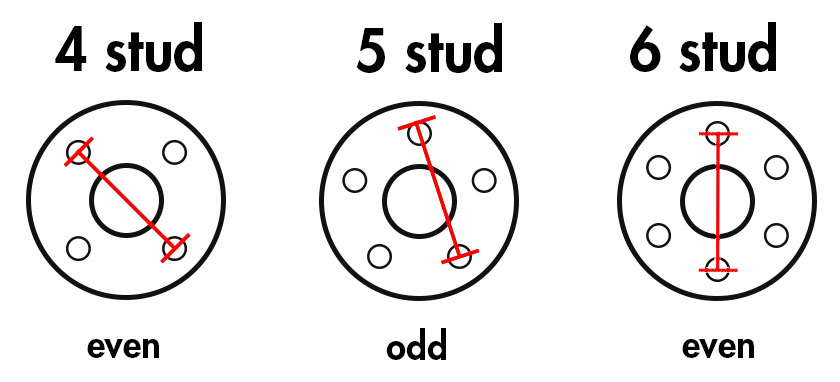

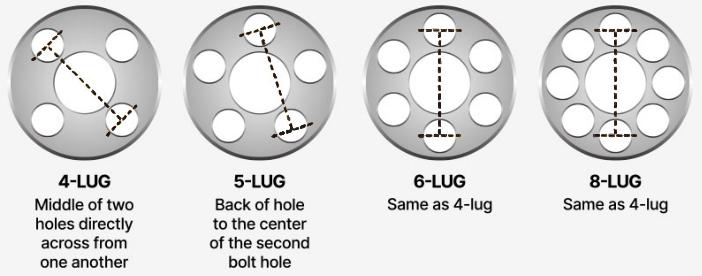

PCD refers to the bolt pattern of the wheel—the number of bolt holes and the diameter of the circle they form.
Example PCD formats:
-
5×112 – Common for Mercedes, Audi, Volkswagen
-
5×114.3 – Common for Japanese cars like Toyota and Nissan
-
5×120 – Used by BMW
Why PCD Must Match Exactly
If the PCD is incorrect:
-
Wheels will not sit properly on the hub
-
Bolts may loosen over time
-
Steering vibration becomes common
Even 1–2 mm difference can cause serious safety issues.
Popular PCD Sizes in the UAE
| Vehicle Brand | Common PCD |
|---|---|
| Mercedes-Benz | 5×112 |
| BMW | 5×120 |
| Toyota | 5×114.3 |
| Nissan | 5×114.3 |
| Lexus | 5×114.3 |
Always verify PCD before purchasing aftermarket alloy wheels in Dubai.
Offset (ET): How Wheel Position Affects Your Car

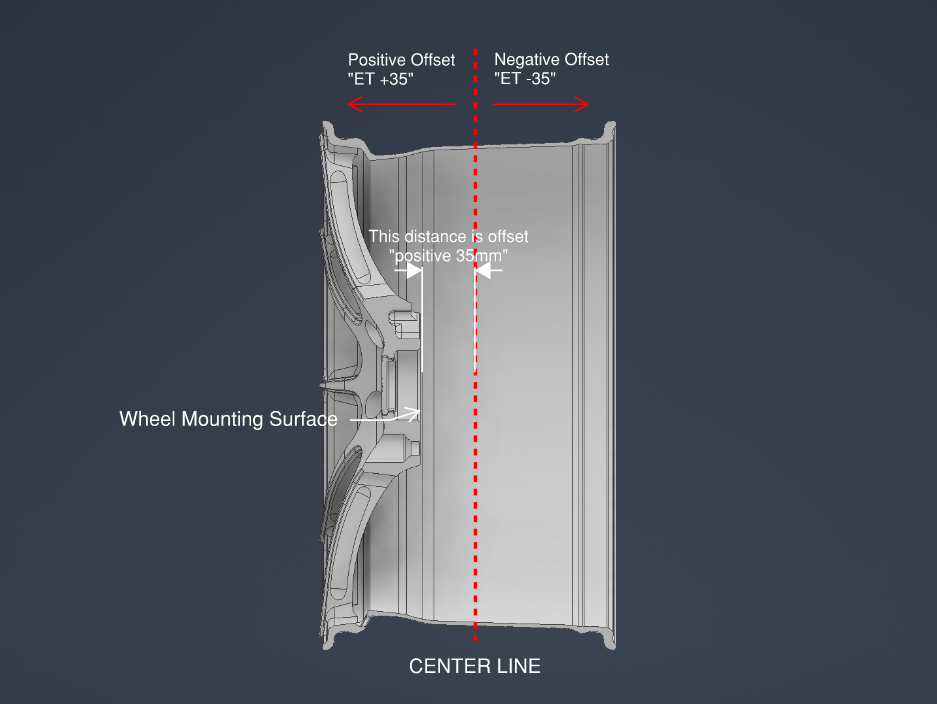

Offset (ET) determines how far the wheel sits inside or outside the wheel arch.
Offset is measured in millimeters.

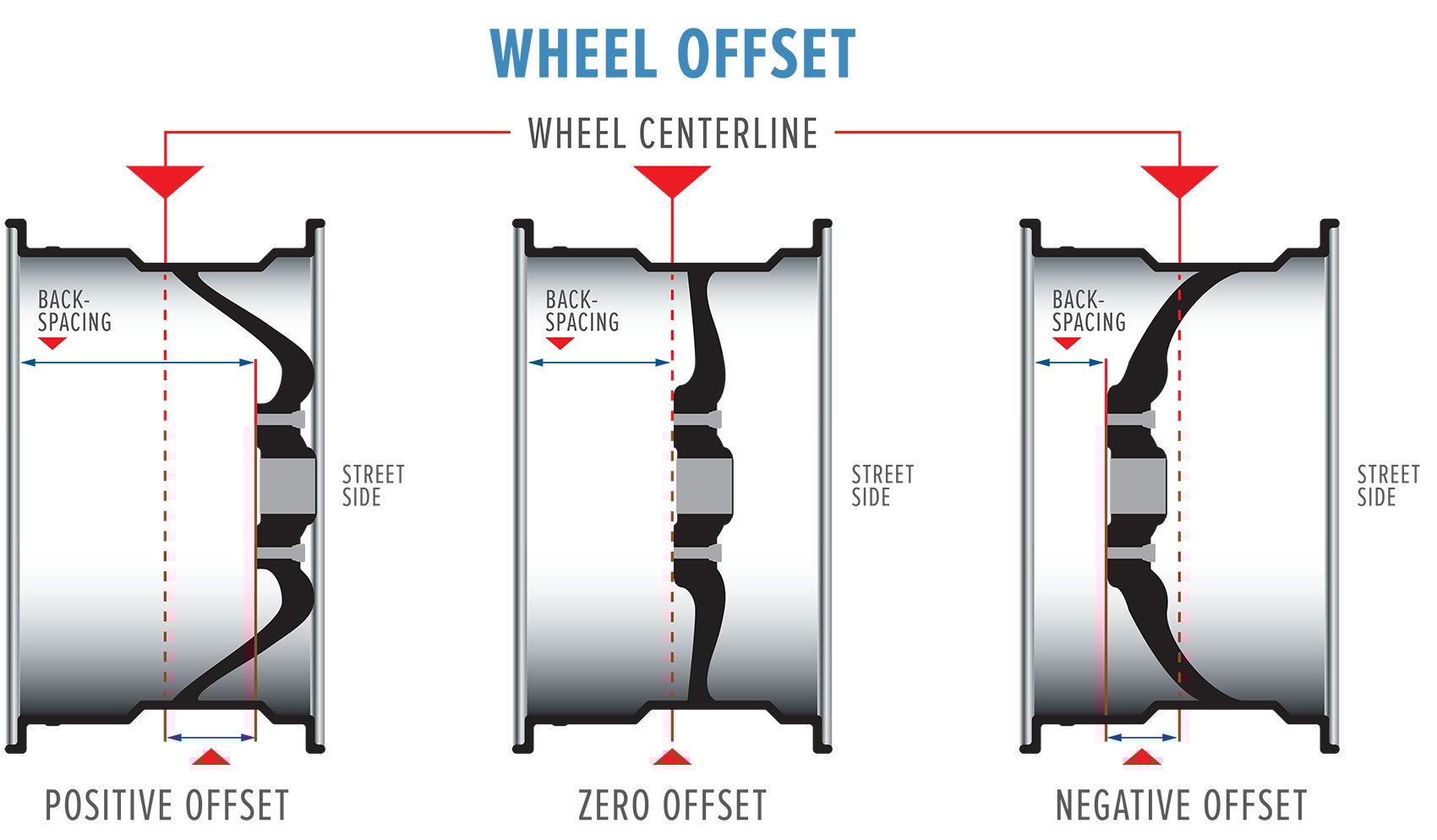

Three Types of Offset
Positive Offset (Most Modern Cars)
Wheel sits closer to the suspension.
Zero Offset
Mounting surface aligned with wheel centerline.
Negative Offset (Off-road vehicles)
Wheel sticks outward for wider stance.
Example
A wheel labeled 18×8.5 ET35 means:
-
18 inch diameter
-
8.5 inch width
-
35 mm offset
Problems from Incorrect Offset
Wrong offset may cause:
-
Wheel rubbing on suspension components
-
Tyre touching fenders
-
Steering instability at high speed
In Dubai, many drivers install lower offsets for aggressive stance, but it must remain within safe limits.
Center Bore: The Hub Fit
The center bore is the hole in the middle of the wheel that fits onto the vehicle’s hub.
This allows the wheel to be hub-centric, meaning the hub supports the weight of the car.
Example Center Bore Sizes
| Brand | Center Bore |
|---|---|
| Mercedes | 66.6 mm |
| BMW | 72.6 mm |
| Toyota | 60.1 mm |
| Nissan | 66.1 mm |

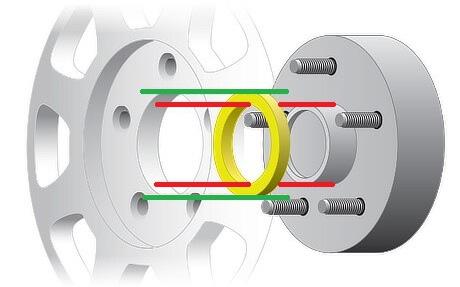

If the center bore is larger than your hub, hub-centric rings are used to fill the gap.
Without these rings:
-
Steering vibration occurs
-
Wheel balance becomes difficult
-
Lug bolts carry excess load

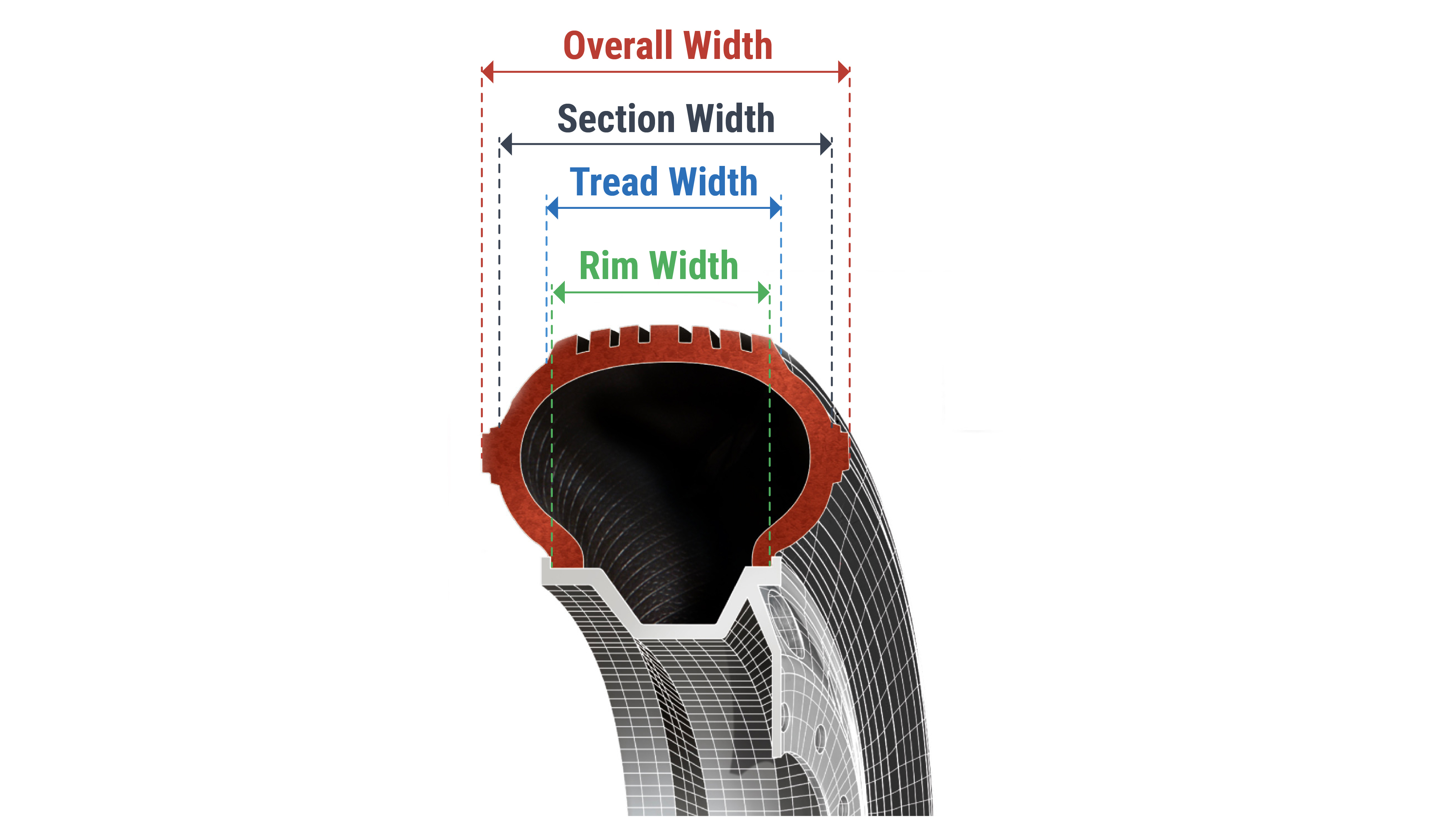

Wheel Width: Choosing the Right Rim Size
Wheel width determines which tyre sizes can be safely installed.
Example rim sizes:
-
7J
-
8J
-
8.5J
-
9J
The number indicates width in inches.
Example Tyre Compatibility
| Wheel Width | Ideal Tyre Size |
|---|---|
| 7.5 inch | 215–225 |
| 8 inch | 225–235 |
| 8.5 inch | 235–255 |
| 9 inch | 245–265 |
Installing tyres too narrow or too wide can cause:
-
Uneven tread wear
-
Reduced grip
-
Increased blowout risk in UAE heat
Popular Alloy Wheel Sizes in Dubai
Wheel upgrades are common in the UAE luxury car market.
Typical sizes:
| Vehicle Type | Typical Wheel Size |
|---|---|
| Sedan | 17–19 inch |
| Luxury Sedan | 19–20 inch |
| SUV | 18–22 inch |
| Performance Cars | 20–21 inch |
Examples in Dubai:
-
Mercedes C-Class → 18–19 inch
-
BMW 5 Series → 19–20 inch
-
Range Rover → 21–22 inch
Bigger wheels improve appearance but may reduce ride comfort on long UAE highway drives.
Alloy Wheels vs Steel Wheels in UAE Climate
| Feature | Alloy Wheels | Steel Wheels |
|---|---|---|
| Weight | Lightweight | Heavy |
| Heat Dissipation | Excellent | Average |
| Performance | Better handling | Basic |
| Appearance | Premium | Plain |
| Price | Higher | Lower |
Because UAE temperatures are extreme, alloy wheels help dissipate brake heat more effectively, making them ideal for high-performance vehicles.
How Much Do Alloy Wheels Cost in Dubai?
Pricing varies based on brand, size, and origin.
Typical price range in the UAE:
| Wheel Type | Price Range |
|---|---|
| Budget aftermarket wheels | AED 1,200 – 2,500 |
| Mid-range alloy wheels | AED 2,500 – 5,000 |
| Premium brands (BBS, Vossen) | AED 6,000 – 15,000+ |
Luxury car owners in Dubai often choose premium forged wheels for both performance and aesthetics.
Tips Before Buying Alloy Wheels in Dubai
Before purchasing new wheels, always check:
✔ Correct PCD
✔ Safe offset (ET)
✔ Compatible center bore
✔ Proper wheel width for your tyres
✔ Clearance for brake calipers
Professional installation and wheel balancing are also essential.
Why Choose Vegas Auto Service for Alloy Wheels in Dubai
Vegas Auto Service provides professional wheel supply and installation for UAE drivers.
Our services include:
-
Premium alloy wheels and rims
-
Professional wheel balancing
-
Accurate fitment checks
-
High-speed road-force balancing
-
Installation for luxury and performance cars
We understand the specific demands of Dubai roads, desert driving, and extreme temperatures.
Book Alloy Wheel Installation in Dubai
Looking to upgrade your car’s wheels?
Vegas Auto Service offers expert alloy wheel supply, fitment, and balancing in Dubai.
Whether you drive a luxury sedan, sports car, or SUV, our technicians ensure perfect fitment and safe performance on UAE highways.
📲 Book your alloy wheel service now via WhatsApp:
+971508001611
FAQs
What does PCD mean on alloy wheels?
PCD stands for Pitch Circle Diameter and describes the number of wheel bolts and the diameter of the circle they form.
What happens if wheel offset is wrong?
Incorrect offset can cause wheel rubbing, steering instability, and uneven tyre wear.
Can I install bigger wheels on my car in Dubai?
Yes, but the new wheels must maintain proper offset, width, and tyre compatibility.
Do I need hub-centric rings for aftermarket wheels?
If the center bore of the wheel is larger than the car hub, hub-centric rings are required to prevent vibration.
Are alloy wheels better than steel wheels in UAE heat?
Yes. Alloy wheels dissipate heat better and improve braking performance in hot climates like Dubai.
